Solar innovation
in Africa

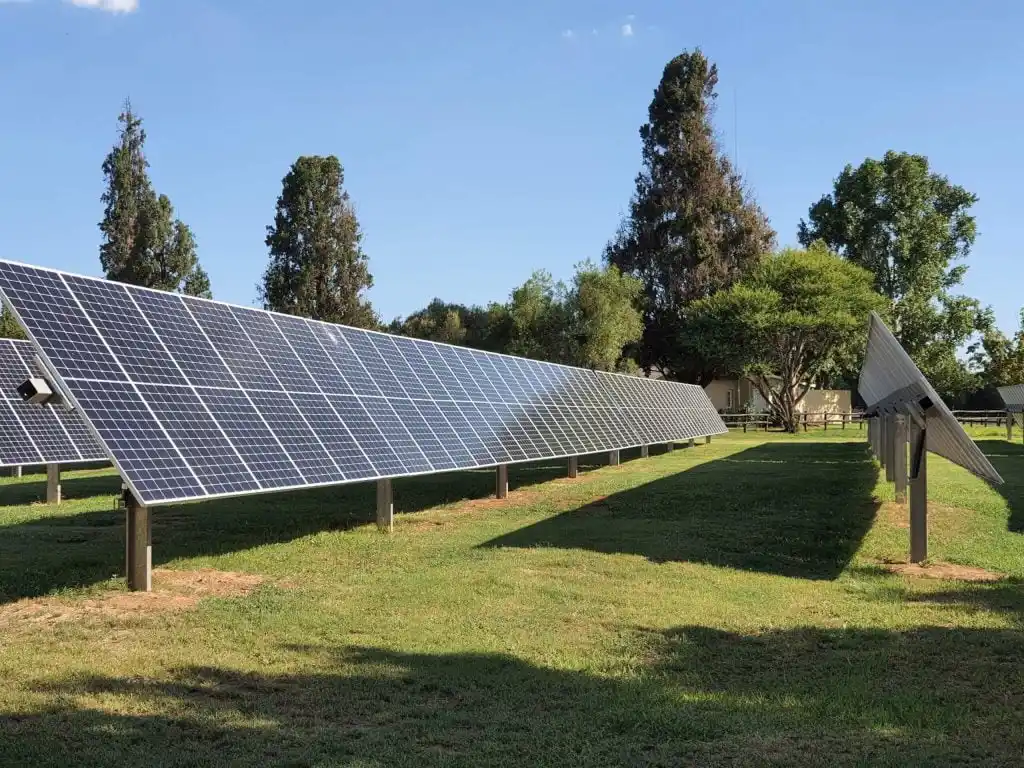

Single Axis Tracking Control System
Precision solar tracking for maximum energy harvest
World Class Technology
Proudly designed and manufactured in Africa
Experience in Every Aspect
Over 30 years in solar, mining & power electronics
About Us
Global design and innovation, with local expertise and support
World Class Technology
At TrackLab, we produce world-class solar technology, proudly created in Africa. Our technology is designed by experts in solar technology and installation.
Experience in Every Aspect
We have over 30 years' experience in solar technology design and development in embedded control systems in Southern Africa:
- Mining Sector
- Power Electronics Sector
- Electric Vehicle Sector
Key Features
- Locally designed, manufactured and supported
- System is customizable according to customer specific requirements
- Extensive data logging and reporting capabilities
- Developed with major established players in the renewable / Solar PV space
- Integration with South African Weather Services (optional)

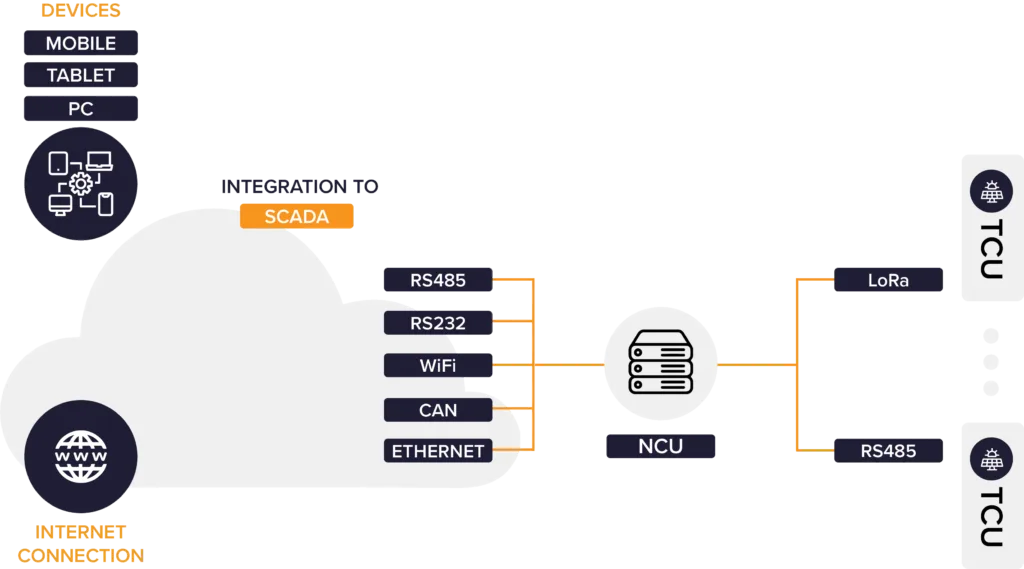

System Design
COMPLY
Developed according to international and local standards: IEC62817, ICASA, & ETSI
DESIGN
Integrated system design for maximum efficiency and customization in every project
CONFIGURE
Customizable configuration that suits your specific project requirements
Technical Specifications
Product Information - Control Characteristics
Tracking TypeSingle-axis, independent horizontal row
Control TypeHybrid Control, Astronomical algorithm & Tilt sensor (closed loop)

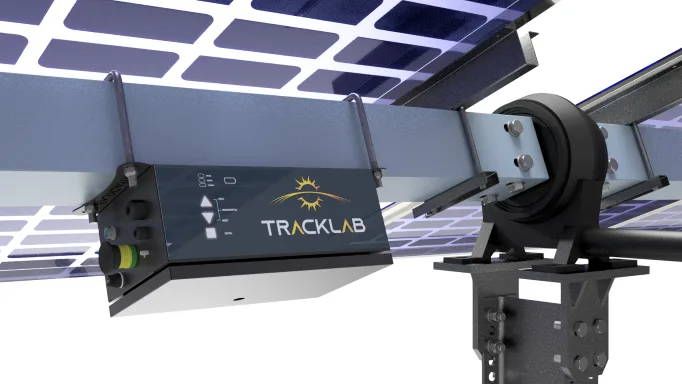

Tracker Controller Unit (TCU) - Electrical Characteristics
Power SourceDedicated PV module powered (12 – 55Vdc); In-line / String powered (200 – 1200Vdc), (200 – 1500Vdc)
Backup Power24V Lithium-Ion, 3.3Ah / 6.6Ah
Integrated Battery ChargerIntelligent constant current, constant voltage (CC/CV) charging
Drive TypeBrushed DC Motor (24V, Max 10A)
Typical Daily Energy Consumption0.08KWh – 0.22KWh/day (Including slew drive, dependent on row length)
Environmental / Enclosure
Operating Temperature−20°C to +60°C
Enclosure RatingIP65 / NEMA4X / IK05. 3CR12 Stainless steel powder coated
Hard Limit SwitchesYes (Optional)
Emergency StopHard wired, mechanically interlocked with drive-system
Network Control Unit (NCU)
IP RatingIP65
Dimensions320 mm x 400 mm x 150 mm
CommunicationsLoRa Wireless, RS485, CAN-2.0, Ethernet, Fibre; Wifi; 4G/LTE module (Optional)
Remote AccessWeb Interface
Power Supply220V; Industrial Grade; Modular; 24V UPS Backup (Lithium-Ion)
Weather MonitoringWind Speed; Wind Direction (Optional); Weather Services Integration (Optional)
ProcessorUp to 16GHz embedded Linux, Microprocessor powered
Commissioning InterfaceIntegrated Web Service; Cross platform: Windows, Android
